5/8 X 1 1/2 X 1/8 OR 1/4 CARTRIDGE ROLL

Roll over image to zoom in Click on image to zoom

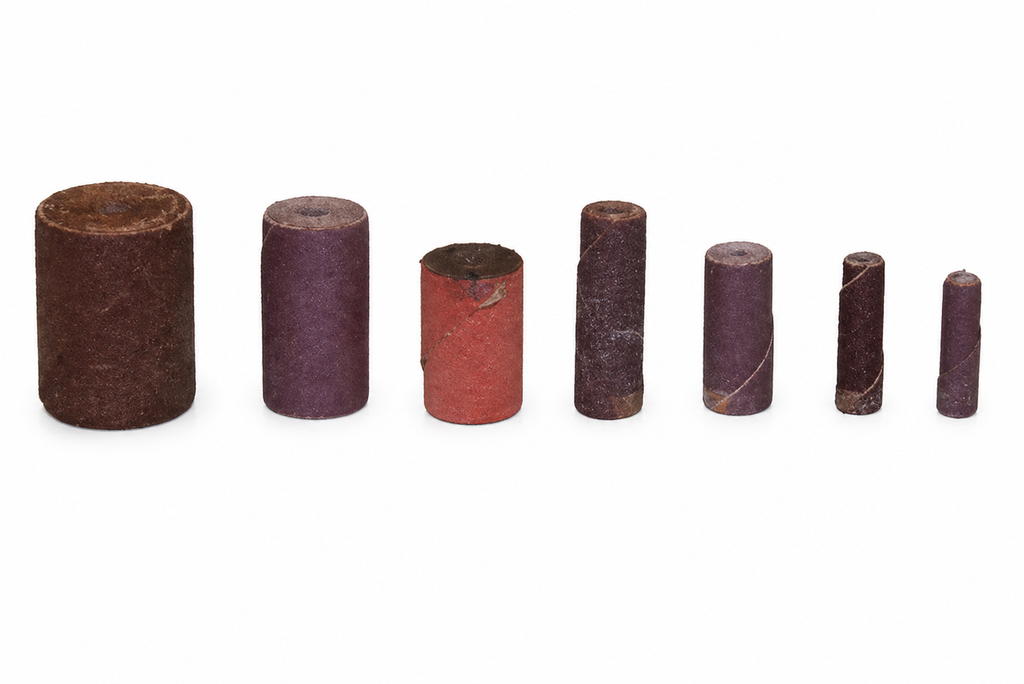

CARTRIDGE ROLL

Cartridge rolls are measured using two main dimensions:

1. Diameter
Measure the width across the roll (the outside diameter).

2. Length
Measure the overall length of the roll from end to end.

Size Format: Diameter × Length
Example: 1/2" × 1" (1/2" diameter × 1" long)

Important Notes:

Measure the outside of the roll, not the inside hole
Sizes are listed in inches
Cartridge rolls are designed to fit standard mandrels (commonly 1/8" or 1/4" shank)
